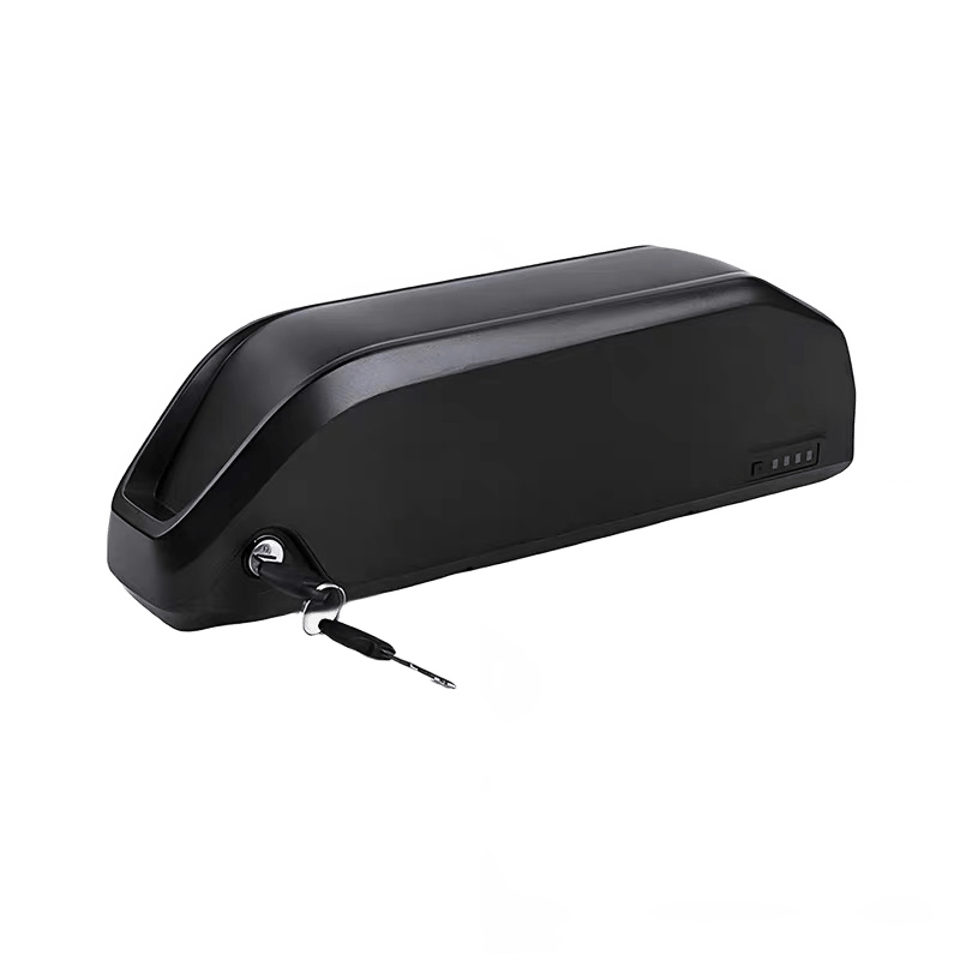

48V 20Ah

48V 20Ah 拷贝.png

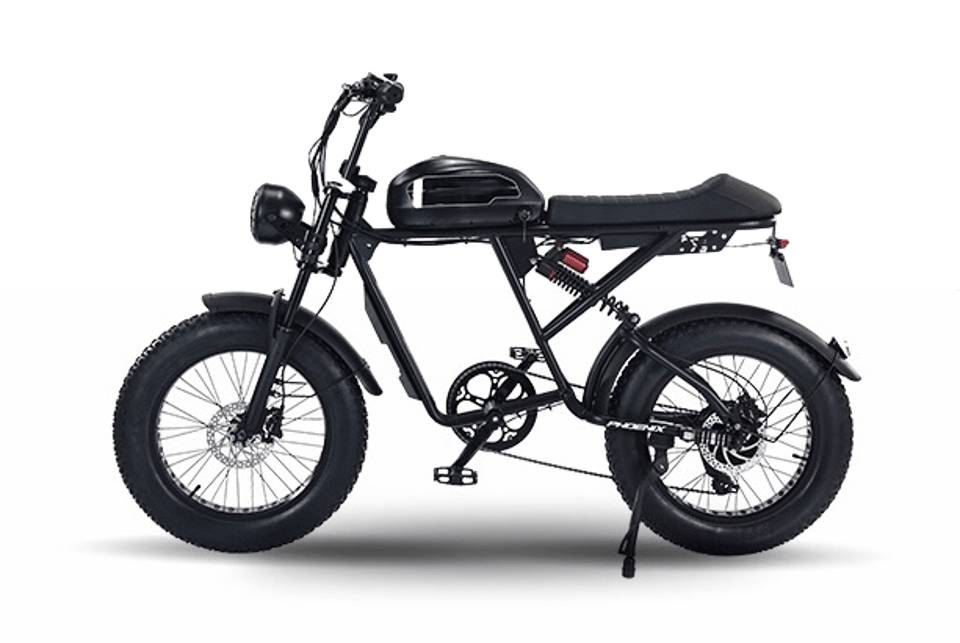

1.应用照片拷贝 3.png



48V 20Ah 拷贝.png


1.应用照片拷贝 3.png



Parameters

Battery pack specifications	Cell model	Typical capacity	Battery energy
48V 20Ah NCM	18650‑2600mAh‑3.6V	20Ah	960Wh
Max. Charge Current	Max. Continuous Discharge Current	Size	Weight
10A/0.5C	30A/1.5C	280×170×75mm±2mm	≈7.0kg
Working temperature	Charging temperature	Operating Voltage	Over‑charge protection
-20°C – 65°C	0°C~45°C	39Vdc – 54.6Vdc	54.6V

WhatsApp Inquiry Contact
